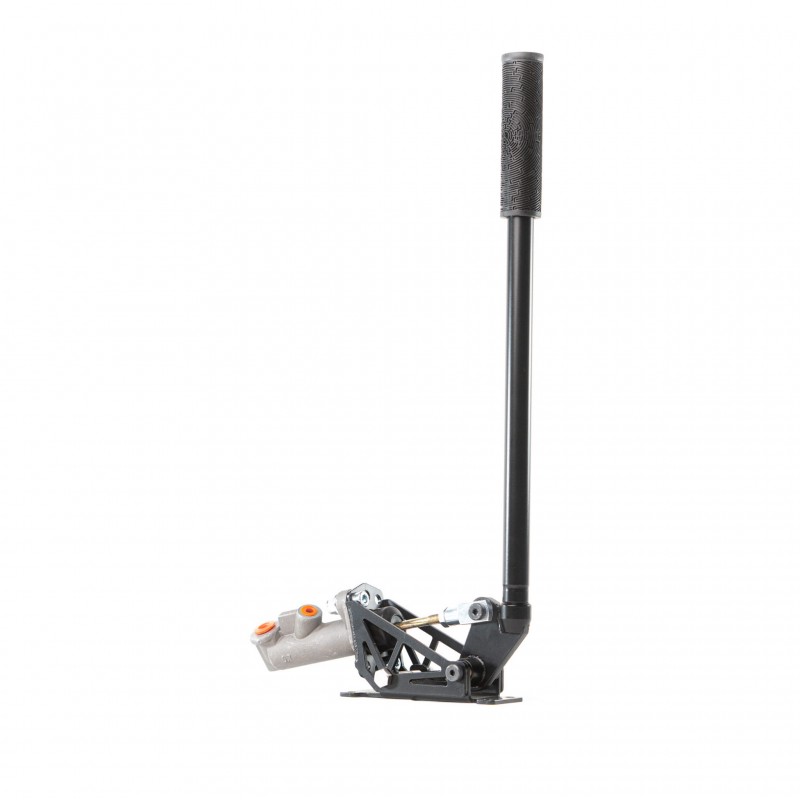

CNC71 Motorsport Hydraulic handbrake VERTICAL - V2

Hydraulic e-brake is the basic element of every car prepared for drifting. CNC71 Motorsport HAVE updated design, kinematics and also they have been able to make it more compact in comparison to previous version.

The laser-cut steel base is powder coated in black. Handle is mounted with brass sleeves, thanks to which it is very unlikely to wear out and start being wobbly. It is also powder coated in black. It can also be easily unscrewed and hidden (e.g. for inspection).

The assembly consists of:

• base made of steel - black painted as standard (possible to order in any colour from the RAL palette)
• brake lever - black painted as standard (possible to order in any colour from the RAL palette)
• selected grip (standard or CULT Vans)
• leverage mechanism
• mounting sleeves made of brass
• mounting screws

The pump 0.7' is included in the set but due to different sizes of brake callipers on the rear axle in various cars please contact us for pump selection. Mounting plate allows installation of any brake master cylinder dedicated for hand brakes (with metric thread).

For example, the BMW E36 rear callipers work well with a 0.625' pump. On the other hand, the newer models of the BMW cars work better with a 0.7' pump and this is the optimal choice.

Inlet thread: 7/16"

Outlet thread: 3/8"
