BMW N54B30 / N54B35 / N54 / N55B30 / S55B30 TWIN PLATE CLUTCH KIT UP TO 1700nM

N54CUTCHEXTR

Clutch kit up to 1040Nm, 1150Nm, 1300Nm, 1570Nm, 1700Nm of torque

NUMBER OF FLYWHEEL BOLTS
CLUTCH OPTION
£1,020.00
Tax included
Quantity



Your purchase is secured by PayPal and Stripe payment system!



Fully insured delivery service by DPD or Parcelforce!



You can always return your UNUSED item for a full refund!

Description

BMW N54B30 / N54B35 /  N54 / N55B30 / S55B30 TWIN PLATE CLUTCH KIT UP TO 1700nM



DUE TO EXTREMELY HIGH VOLUMES OF ORDERS, DELIVERY TIME OF CLUTCH KITS CAN TAKE UP TO 5 WEEKS

THANK YOU FOR UNDERSTANDING

PLEASE MENTION THE ENGINE and GEARBOX CODE IN THE NOTES



Clutch kit up to 1040Nm, 1150Nm, 1300Nm, 1570Nm, 1700Nm of torque
Flywheel is 300% stronger than thin, light steel flywheels of similar weight



Adamat Performance offers the lightweight single-mass twin-plate clutch kit for six-cylinder turbo BMW engines, including N54 (6 or 8 bolt versions) and N55 series. The clutch is a plug-and-play replacement for the factory dual-mass setup.



Technical specifications:

  • Dedicated engines: N54B30, N54B35, N55B30, S55B30
  • Flywheel weight: 6.9kg
  • Flywheel material: Special Grade Aluminium Alloy AlZnMg+Ti
  • Clutch disc diameter: 240mm
  • Friction material: LUK 8090S with Kevlar reinforcement
  • Clutch spline size: 32.5x35-26N
  • Maximum torque: Stage 1 – 1040Nm
  • Pressure plate: SACHS 3082311341
  • Recommended release bearing: SACHS 3189600090
  • Dynamic balancing: Yes, ISO1940/1 Class G6.3, certified by CIMAT balancing machine

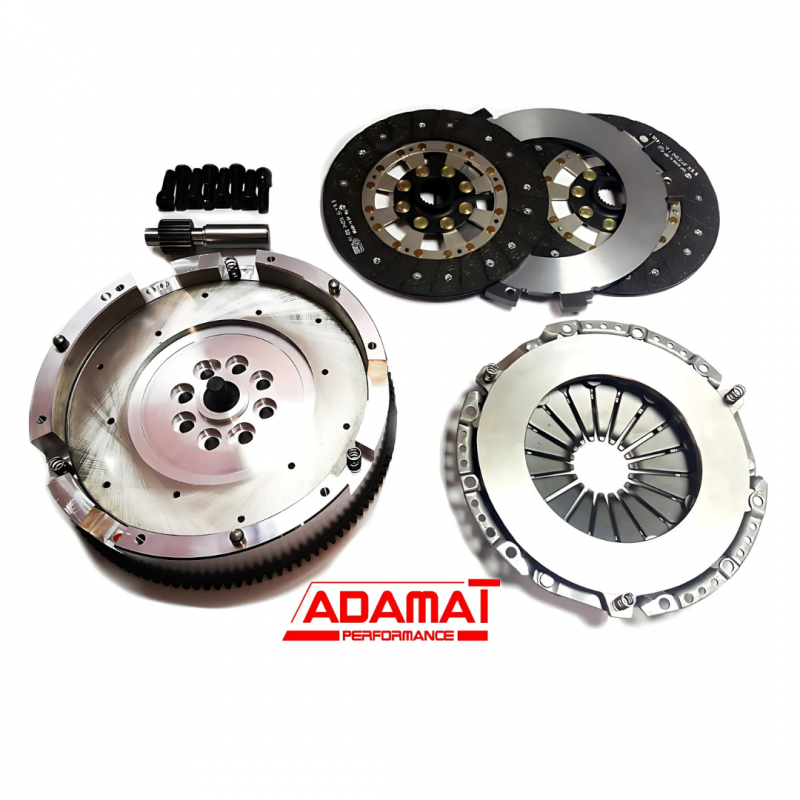

The complete Stage 1 kit includes:

  • 6.9kg flywheel made from aerospace-grade AlZnMg+Ti alloy, exceeding the strength of typical flywheel materials. The flywheel is 100% CNC-machined and comes with an integrated starter ring gear. A replaceable spheroidal graphite iron (GJS600) friction insert is fitted, allowing easy refurbishment.
  • Two 240mm clutch discs with LUK 8090S Kevlar-reinforced friction linings
  • SACHS 3000724001 pressure plate
  • Intermediate plate made from specially heat-treated steel, resistant to high-temperature deformation
  • New flywheel bolts, grade 12.9
  • Assembly alignment dowel for accurate disc centring



Clutch description:

Adamat Performance clutches feature a patented damping system for the intermediate plates used in multi-disc designs. Multi-disc clutches can often produce concerning noises such as knocks or rattles, which can leave the user uncertain whether this is normal or a sign of wear. With their solution, these noises are eliminated, and the clutch operates with the smoothness of a single-disc system. The damping system also prevents shock between the surfaces of the intermediate plate in contact with the flywheel.



Additionally, the clutch incorporates a spring-based centring system for the intermediate plate during disengagement. Properly calculated springs allow fast gear changes, similar to a single-disc clutch, by automatically retracting the intermediate plate from the clutch discs during operation.



After order please sent us info what basic gearbox and engine you will use



Clutch set is fully dynamically balanced and maximally optimised for strength analysis through virtual FEM analysis and real tests



Clutch disc options

STAGE 1

Luk 8090S pads +

3000724001

-Street cars and occasional track use

 up to 1040Nm
STAGE 2

Sintering pads +

3000724001

-Race, rally, drift or drag cars fitted with road-legal tyres

 up to 1150Nm
STAGE 3

Luk 8090S pads +

Sachs Racing 883082.001243

-High-performance road cars (approximately 50% road use / 50% track use)

 up to 1300Nm
STAGE 4

100% Kevlar MAKLAND pads +

Sachs Racing 883082.001243

– Off-road and cross-country vehicles

 up to 1570Nm
STAGE 5

Sintering pads +

Sachs Racing 883082.001243

– High-power race or rally cars, drift/drag cars with high-grip semi-slick or slick tyres, cross-country rally-raid vehicles

 up to 1700Nm
Product Details
N54CUTCHEXTR
