STAGE 1 Toyota JZ 1JZ 2JZ - Toyota Altezza / Lexus IS200 J160 Aisin AZ6 (first gen.)

S1-JZ-J160-742

PMC Motorsport STAGE 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion) Toyota JZ 1JZ 2JZ - Toyota Altezza / Lexus IS200 J160 Aisin AZ6 1G-FE (first gen) - 240mm / 9.45" - Sachs 3000 950 742

£995.00
Tax included 1-2 weeks delivery time
Quantity



Your purchase is secured by PayPal and Stripe payment system!



Fully insured delivery service by DPD or Parcelforce!



You can always return your UNUSED item for a full refund!

Description

PMC Motorsport Stage 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion / clutch kit) Toyota JZ 1JZ 2JZ - Toyota Altezza / Lexus IS200 J160 Aisin AZ6 1G-FE (first gen) - 240mm / 9.45" + Sachs 3000 950 742



Aluminium adapter enabling to mate (SWAP / conversion) the Toyota JZ 1JZ 2JZ engine, with the Toyota Aisin J160 gearbox from Toyota Altezza / Lexus IS200 J160 (2.0 L 1G-FE AS200)



-PMC Motorsport adapters are used in both daily driver vehicles and professional projects intended for competitive motorsport.

-Every component for which PMC Motorsport produces parts is measured using coordinate measuring machines and 3D scanners. Prototypes undergo numerous tests to eliminate any possible issues in their usage. Certified materials from trusted suppliers in production.

-After each production stage, the component undergoes inspection. Quality is confirmed by the ISO PN-EN ISO 9001:2015 certificate.

-Adapter ensure perfect alignment between the engine and gearbox.



Engine list:

Toyota 1JZ (non VVT-i / VVT-i version)

Toyota 1JZ-FSE

Toyota 1JZ-GE

Toyota 1JZ-GTE

Toyota 1JZ (non VVT-i / VVT-i version)

Toyota 1JZ-FSE

Toyota 1JZ-GE

Toyota 1JZ-GTE

Toyota 2JZ (non VVT-i / VVT-i version)

Toyota 2JZ-FSE

Toyota 2JZ-GE

Toyota 2JZ-GTE
Gearbox list:  Lexus IS200 J160 First gen. Aisin AZ6 (2.0 L 1G-FE AS200)



Manual

You should use the flywheel / ring gear from the automatic version of the Toyota 1JZ 2JZ, along with one spacer (OE 32116-22020 4.5mm) between the engine block and the ring gear (not included in the kit).

The starter remains OE Toyota 1JZ 2JZ

Remove the bearing from the crankshaft hub (automatic version JZ) and replace it with a centring sleeve from the kit.



Clutch Set

Set with Clutch Yes
Max torque 600Nm / 442,39 lb/ft
Flywheel Type Single Disc
Diameter of Friction Plate 240mm / 9.45"
Clutch Set included Sachs 3000 950 742
Self-adjusting Yes
Clutch disc Included
Release bearing required Included
Clutch fork required Dedicated to your gearbox
Starter required (not included) Toyota JZ (OE)
Flexplate / ring gear / Drive plate required                                                                                     Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate



ADDITIONAL INFORMATION

Adapter Kit Type

Motorsport

Daily

Drift
Gearbox adapter thickness 30mm / 1.18"
Tighten the flywheel to the specified torque 72Nm + Glue
Flywheel weight 5.60 kg / 12.35 lb
Replaceable friction surface Yes

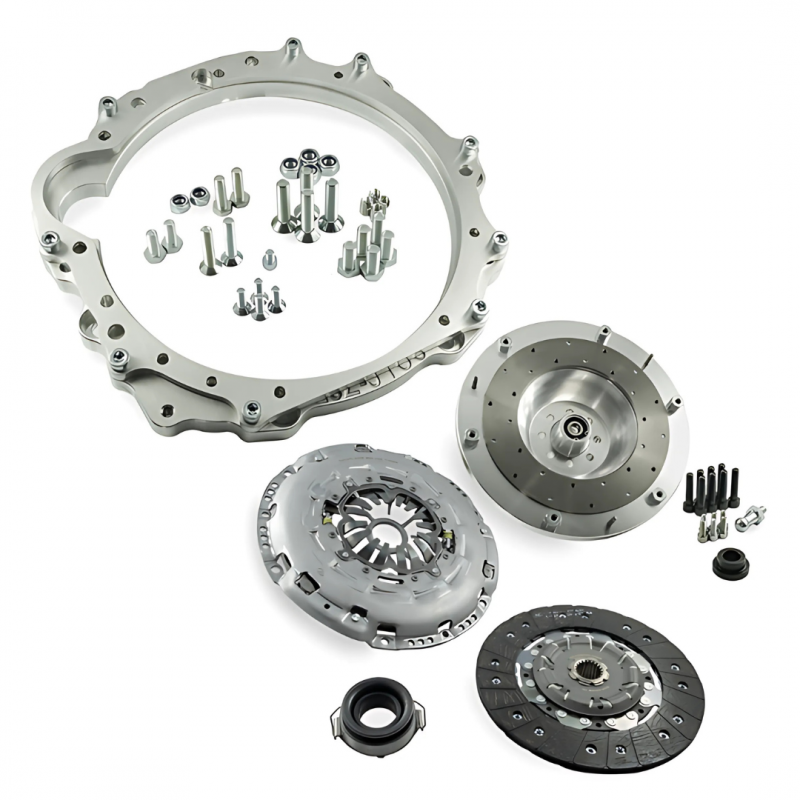

Set includes

Aluminium gearbox adapter

Gearbox adapter bolts

Custom Flywheel

Crankshaft bolts kit

Clutch cover - pressure plate bolts kit

Spherical pin

Clutch kit Sachs 3000 950 742
Product sales codes included

F0J160-JZ (2387)

K0J160-JZ (2462)

Sachs 742

Product Details
S1-JZ-J160-742
