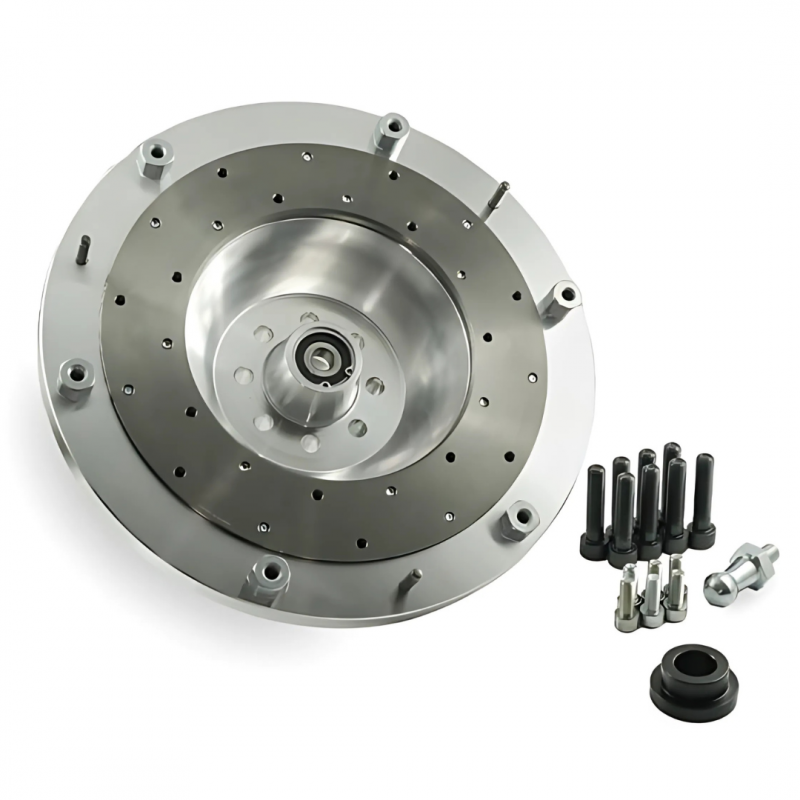

Custom aluminium flywheel designed to mate the Toyota JZ 1JZ 2JZ engine to the Toyota Aisin J160 gearbox
-Every component for which PMC Motorsport produces parts is measured using coordinate measuring machines and 3D scanners. Prototypes undergo numerous tests to eliminate any possible issues in their usage. Certified materials from trusted suppliers in production.
-After each production stage, the component undergoes inspection. Quality is confirmed by the ISO PN-EN ISO 9001:2015 certificate.
| Engine list: |
Toyota JZ (non VVT-i / VVT-i version) Toyota 1JZ (non VVT-i / VVT-i version) Toyota 2JZ (non VVT-i / VVT-i version) |
| Manual gearbox list (Petrol): | Lexus IS200 J160 First gen. Aisin AZ6 (2.0 L 1G-FE AS200) |
-You should use the flywheel / ring gear from the automatic version of the Toyota 1JZ 2JZ, along with one spacer (OE 32116-22020 4.5mm) between the engine block and the ring gear (not included in the kit).
-The starter remains OE Toyota 1JZ 2JZ
-Remove the bearing from the crankshaft hub (automatic version JZ) and replace it with a centring sleeve from the kit.
| Flywheel Type | Single Disc |
| Diameter of Friction Plate | 240mm / 9.45" |
| Recommended clutch pressure plate | Sachs 3000 950 742 |
| Clutch disc | From the clutch kit Sachs 3000 950 742 |
| Release bearing required | From the clutch kit Sachs 3000 950 742 |
| Clutch fork required | Dedicated to your gearbox |
| Starter required (not included) | Toyota JZ (OE) |
| Flexplate / ring gear / Drive plate required | Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate |
| Flywheel weight | 5.60 kg / 12.35 lb |
| Tightening torque for flywheel bolts | 72Nm + glue |
| Set includes |
Clutch cover - pressure plate bolts kit Spherical Pin Crankshaft bolts kit |
| Material | Aluminium |
| Replaceable friction surface | Yes |
| Gearbox adapter required | F0J160-JZ |
Reference: F0J160-JZ
Brand: PMC Motorsport
PMC Motorsport Adapter Plate (gearbox adapter / transmission adapter) Toyota JZ 1JZ 2JZ - Toyota Altezza / Lexus IS200 J160 Aisin AZ6 1G-FE (first gen)
