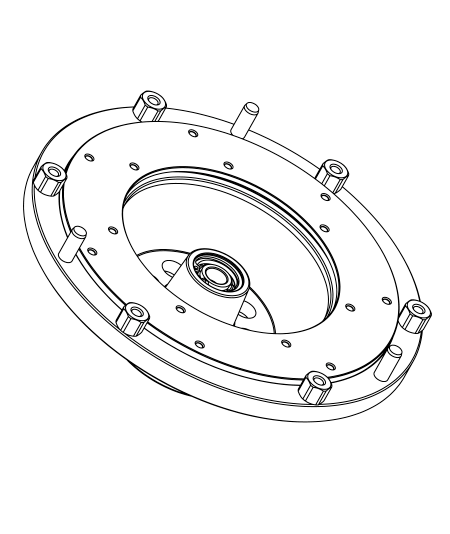

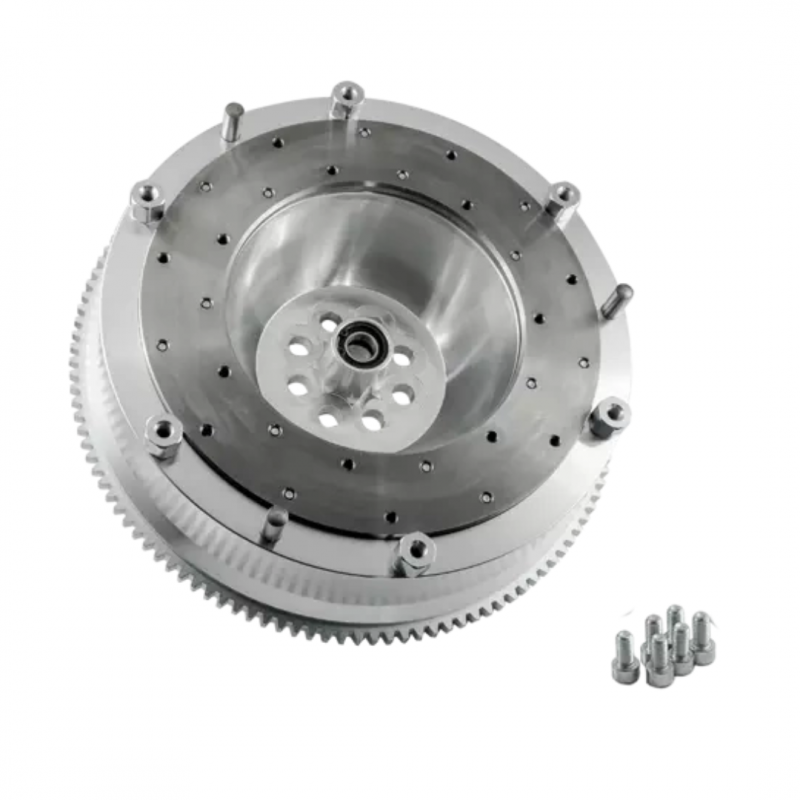

Custom aluminium flywheel designed to mate the Honda K K20 K24 engine to the BMW Getrag / ZF manual gearbox
Balanced before shipping. Each of our flywheels is thoroughly inspected and balanced before shipping.

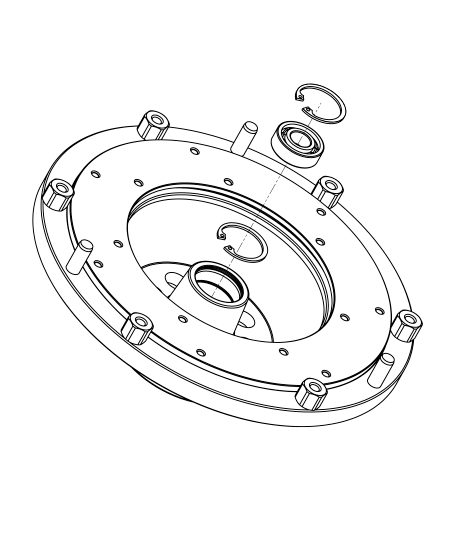

Clutch shaft pilot bearing. The bearing supports the clutch shaft and minimizes its vibrations.

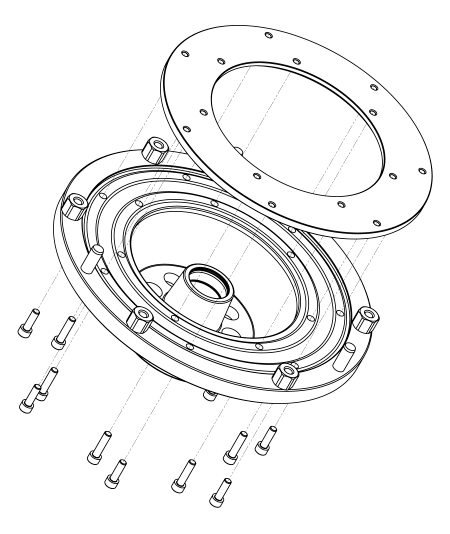

Replaceable friction surface. The worn cast iron surface is easily removable and can be replaced with a completely new one, available in our offer.
Professionalism. From design to implementation, our parts go through extensive processes. Each component is measured with a measuring arm and a 3D scanner. Prototypes are subjected to numerous tests to eliminate all potential issues. We use only certified materials from trusted suppliers, and our CNC machining facilities are staffed by experienced professionals.
Perfect Coaxiality. PMC Motorsport adapters guarantee perfect alignment between the engine and the transmission.
Experience. Thousands of adapters produced and satisfied customers worldwide. PMC Motorsport adapters are used in both daily vehicles and professional motorsport projects.
Certified Quality. Quality is priority. Each part undergoes control at every production stage. Every component is engraved with a unique serial number. ISO PN-EN ISO 9001:2015 certified.
Availability and Price. Millions of vehicles produced ensure easy access to spare parts, both from ASO services and the aftermarket.
Durability and Reliability. BMW ZF/Getrag transmissions have proven themselves in amateur and professional motorsport for years. They handle high torque (some models 1000Nm+) and are highly reliable, ideal for high-power SWAP projects.
Speed and Convenience. Modern ZF 8HP or Getrag DCT DKG automatic transmissions provide ultra-fast gear shifts (0.2 seconds).
| Compatible Engines: |
Honda K Honda K20 Honda K24 |
| Compatible Transmissions: |
GETRAG S5D-250G S5D250 5-speed BMW M50 M52 ZF (ZF Friedrichshafen) S5D-310 ZF 310 / ZF310 S5-31 5-speed BMW M50 ZF (ZF Friedrichshafen) S5D-320 ZF 320 / ZF320 S5-32 5-speed BMW M50 M52 S50 S52 S54 GETRAG 420 / 420G 6-speed GETRAG 420 / 420G TBAB BMW S50 E36 M3 GETRAG 420 / 420G TAGU BMW S50 E36 M3 GETRAG 420 / 420G TBAI BMW S54 E46 M3 The flywheel does not fit the BMW M54 6-speed gearbox |
| Flywheel Type | Single Disc |
| Diameter of Friction Plate | 240mm / 9.45" |
|
Recommended clutch pressure plate |
Sachs Performance 88 308 200 1243 / 883082.001243 Sachs XTend 3000 951 877 (BMW M57) |
| Clutch disc |
BMW M50 M52 M54 5-speed 23x29-10N [240mm / 9.45"] BMW ZF GS5-39DZ 5-speed 28X35-10N [240mm / 9.45"] BMW E36 M3 GETRAG 420 TBAB 6-speed 23x29-10N [240mm / 9.45"] BMW E46 M3 GETRAG 420 TBAI 6-speed 28X35-10N [240mm / 9.45"] |
| Release bearing required | Dedicated to your gearbox |
| Clutch fork required | Dedicated to your gearbox |
| Clutch Slave Cylinder required | Dedicated to your gearbox |
| Starter required (not included) | Honda K (OE) |
| Required bolts (not included) | Honda K OE 90011-PNA-B00 |
| Flywheel weight | 5.85 kg / 12.90 lbs |
| Replaceable friction surface | Yes |
| Set includes |
Clutch cover - pressure plate bolts kit Flywheel centering sleeve Custom Flywheel |
| Material |
Aluminium Cast iron |
