Flywheel Toyota JZ 1JZ 2JZ - BMW M50 S50 M52 S52 M54 S54 ZF5 Getrag 420G - 240mm / 9.45"

K0M50-240-JZ

PMC Motorsport Lightweight custom aluminium flywheel Toyota JZ 1JZ 2JZ - BMW M50 M52 M54 ZF ZF310 ZF ZF320 ZF5 S5D-250 S50 S52 S54 Getrag 420G - 240mm / 9.45"

£465.00
Tax included 1-2 weeks delivery time
Quantity



Your purchase is secured by PayPal and Stripe payment system!



Fully insured delivery service by DPD or Parcelforce!



You can always return your UNUSED item for a full refund!

Description

PMC Motorsport Lightweight custom aluminium flywheel Toyota JZ 1JZ 2JZ - BMW M50 M52 M54 ZF ZF310 ZF ZF320 ZF5 S5D-250 S50 S52 S54 Getrag 420G - 240mm / 9.45"



Custom aluminium flywheel designed to mate the Toyota JZ 1JZ 2JZ engine to the BMW Getrag / ZF manual gearbox



-BMW ZF/Getrag gearboxes have been successfully used in both amateur and professional motorsports for many years. They can handle very high torque (some models exceeding 1000Nm) while ensuring great reliability. They are perfect for swaps in high-power projects intended for daily use.

-Opting for the latest generation automatic gearboxes such as ZF 8HP or Getrag DCT DKG provide ultra-fast gear shift times (0.2 seconds), enhancing both speed and convenience.

-PMC Motorsport adapters are used in both daily driver vehicles and professional projects intended for competitive motorsport.

-Every component for which PMC Motorsport produces parts is measured using coordinate measuring machines and 3D scanners. Prototypes undergo numerous tests to eliminate any possible issues in their usage. Certified materials from trusted suppliers in production.

-After each production stage, the component undergoes inspection. Quality is confirmed by the ISO PN-EN ISO 9001:2015 certificate.



Compatible engines:

Toyota JZ (non-VVT-i / VVT-i version)

Toyota 1JZ (non-VVT-i / VVT-i version)

Toyota 2JZ (non-VVT-i / VVT-i version)
Compatible manual BMW gearboxes (Petrol):

BMW GETRAG S5D-250G S5D250 5-speed

BMW GETRAG M50 M52

BMW ZF (ZF Friedrichshafen) S5D-310 ZF 310 / ZF310 S5-31 5-speed

BMW ZF (ZF Friedrichshafen) M50

BMW ZF (ZF Friedrichshafen) S5D-320 ZF 320 / ZF320 S5-32 5-speed

BMW ZF (ZF Friedrichshafen) M50 M52 S50 S52 S54

BMW GETRAG 420 / 420G 6-speed

BMW GETRAG 420 / 420G TBAB S50 E36 M3

BMW GETRAG 420 / 420G TAGU S50 E36 M3



The flywheel does not fit the BMW M54 6-speed gearbox



Installation Instructions

PMC Motorsport parts are intended for motorsport use on racetracks. Parts are to be installed by professionals using appropriate tools in suitable workshops

-You should use the flywheel / ring gear from the automatic version of the Toyota 1JZ 2JZ, along with one spacer (OE 32116-22020 4.5mm) between the engine block and the ring gear (not included in the kit).

-The starter remains OE Toyota 1JZ 2JZ

-Remove the bearing from the crankshaft hub (automatic version JZ) and replace it with a centering sleeve from the kit.

-The bearing and clutch release fork remain from the existing gearbox. If you have a bearing with two height positions, use the 24mm position.

-Use a 240mm clutch disc that fits your gearbox.

-Replace the original spherical pin (pivot pin) with the custom one from the kit.



Clutch Set

Flywheel Type Single Disc
Diameter of Friction Plate 240mm / 9.45"
Recommended clutch pressure plate

Sachs Performance 88 308 200 1243 / 883082.001243

SACHS XTend 3000 951 877 (BMW M57)
Clutch disc

BMW E36 M3 GETRAG 420 TBAB 6-speed 23x29-10N [240mm / 9.45"]

BMW E46 M3 GETRAG 420 TBAI 6-speed 28X35-10N [240mm / 9.45"]

BMW M50 M52 M54 5-speed 23x29-10N [240mm / 9.45"]
Release bearing required Dedicated to your gearbox
Clutch fork required Dedicated to your gearbox
Clutch Slave Cylinder required Dedicated to your gearbox
Starter required (not included) Toyota JZ (OE)
Flexplate / ring gear / Drive plate required Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate



ADDITIONAL INFORMATION

Flywheel weight 5.00 kg / 11.02 lbs
Tightening torque for flywheel bolts 72Nm + glue
Replaceable friction surface Yes

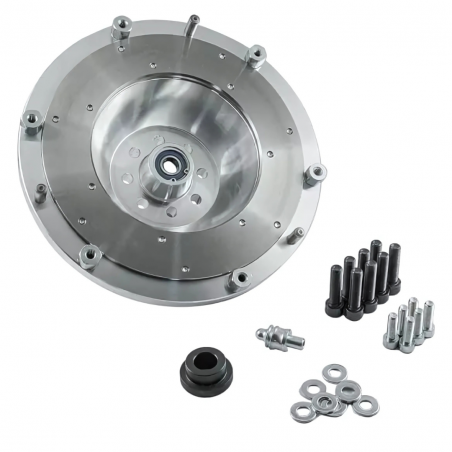

Set includes

Clutch cover - pressure plate bolts kit

Crankshaft bolts kit

Flywheel centring sleeve

Custom Clutch fork pivot pin / Ball

Custom Flywheel
Material

Aluminium

Cast iron
Gearbox adapter required F0BMW-JZ
Product Details
K0M50-240-JZ
