Race Stage 1 Toyota UZ - BMW M50 S50 M52 S52 M54 ZF-5 - 240mm / 9.45"

RS1-UZ-M50-SP

PMC Motorsport Race Stage 1 Adapter kit Toyota Lexus V8 UZ 1UZ 3UZ- BMW M50 M52 M54 ZF310 ZF320 S5D-250 5-speed / S50 S52 Getrag 420G 6-speed - 240mm / 9.45" + Sachs Performance 883082.001243 + Sintered disc 23x29-10N max. 800Nm / 589,9 lb/ft

£1,290.00
Tax included 1-2 weeks delivery time
Quantity



Your purchase is secured by PayPal and Stripe payment system!



Fully insured delivery service by DPD or Parcelforce!



You can always return your UNUSED item for a full refund!

Description

PMC Motorsport Race Stage 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion / clutch kit) Toyota Lexus V8 UZ 1UZ 3UZ - BMW M50 M52 M54 ZF310 ZF320 ZF-5 S5D-250 5-speed / S50 S52 Getrag 420G 6-speed - 240mm / 9.45" + Sachs Performance 883082.001243 + Sintered disc 23x29-10N max. 800Nm / 589,9 lb/ft



Aluminium clutch kit enabling the connection (swap / conversion) of Toyota Lexus V8 UZ 1UZ 3UZ with a manual ZF gearbox (ZF Friedrichshafen) / Getrag gearbox from BMW. The adapter supports popular manual gearboxes such as ZF 5, Getrag 420 G, Getrag 250 G.

Custom aluminium flywheel 240mm / 9.45" with interchangeable friction disc (FW001.00.02 spare part available on the website) - adapted for BMW M57 or BMW E46 M3 pressure plate (not compatible with M50 / M52 / M54 / S50 / e36 M3). Each PMC Motorsport flywheel is checked and balanced before shipment, the kit includes all necessary mounting bolts.

ZF Friedrichshafen ZF-5 (ZF 5) S5D-310 S5D-320 is a 5-speed manual transmission used in BMW E series with engines M50 M52 M54 ( E36 328i, M3 USA E46 328i, 328ci, 330i, E34 525i (M50), E39 525i (M54) 528i (M52) 530i (M54), Z3 2.8i (M52) 3.0i (M54), Z3 M3.2i (S52) *Canada & USA only, M3.2i (S54)). The weight of the transmission is approximately 39 kg (86 lb), input shaft 23x29-10N.



 Gear ratios

1 2 3 4 5 R
4.21 2.49 1.67 1.24 1.0 3.85



The clutch adapter is used in Toyota Lexus V8 UZ 1UZ 3UZ swaps in both classic BMW E series models such as E30 E36 E46 E39 E60 E61 E90 E92 E81 E82 and new F and G models. The widespread availability and durability of BMW ZF and Getrag gearboxes make them a very common choice for building projects intended for both daily driving and motorsport (Drift / Time Attack). The ZF-5 gearbox bellhousing is also widely used by manufacturers of sports dogleg (dog-leg) gearboxes.



Why Choose BMW Gearboxes?

Availability and price. Millions of BMW vehicles produced globally guarantee easy access to spare parts. Both parts and complete gearboxes are widely available at authorized service centers and on the secondary market.

Durability and reliability. BMW ZF / Getrag gearboxes have been successfully used in both amateur and professional motorsport for many years. They can handle very high torque (some models over 1000 Nm) while maintaining high reliability. They are ideal for engine swaps in high-performance projects for daily use.

Speed and convenience. New generation automatic gearboxes such as ZF 8HP or Getrag DCT DKG offer ultra-fast shifting times (as fast as 0.2 seconds), which significantly improves driving dynamics.



-PMC Motorsport adapters are used in both daily driver vehicles and professional projects intended for competitive motorsport.

-Every component for which we produce parts is measured using coordinate measuring machines and 3D scanners. Prototypes undergo numerous tests to eliminate any possible issues in their usage. Certified materials from trusted suppliers in production.

-After each production stage, the component undergoes inspection. Quality is confirmed by the ISO PN-EN ISO 9001:2015 certificate.



Engine list:

Toyota / Lexus V8 UZ UZ-FE

Toyota / Lexus V8 1UZ 1UZ-FE

  • 1989–2000 Lexus LS 400/Toyota Celsior
  • 1989–2002 Toyota Crown/Toyota Crown Majesta
  • 1991–2000 Lexus SC 400/Toyota Soarer
  • 1992–2000 Lexus GS 400/Toyota Aristo
  • 1995–1997 SARD MC8/MC8-R

Toyota / Lexus V8 3UZ 3UZ-FE

  • Lexus LS 430 (2000-2006)
  • Lexus GS 430 (2000-2007)
  • Lexus SC 430/Toyota Soarer (2001-2010)
  • Toyota Crown Majesta (2004-2010)
  • Hongqi HQ430
Manual BMW gearbox list (Petrol):

BMW GETRAG S5D-250G S5D250 5-speed

BMW GETRAG M50 M52

BMW ZF (ZF Friedrichshafen) S5D-310 ZF 310 / ZF310 S5-31 5-speed

BMW ZF (ZF Friedrichshafen) M50

BMW ZF (ZF Friedrichshafen) S5D-320 ZF 320 / ZF320 S5-32 5-speed

BMW ZF (ZF Friedrichshafen) M50 M52 S50 S52 S54

BMW GETRAG 420 / 420G 6-speed

BMW GETRAG 420 / 420G TBAB S50 E36 M3

BMW GETRAG 420 / 420G TAGU S50 E36 M3

The flywheel does not fit the BMW M54 6-speed gearbox



Manual

-You should use the flywheel / ring gear from the automatic version of the Toyota Lexus V8 UZ, along with one spacer (OE 32116-50010 4.5mm) between the engine block and the ring gear (not included in the kit).

-The starter remains OE Toyota Lexus V8 UZ

-Two mounting holes of the ZF-310 ZF-320 Getrag 250 Getrag 420 gearbox should be ground down.

-The bearing and clutch release fork remain from the existing gearbox. If you have a bearing with two height positions, use the 24mm position.

-Replace the original spherical pin (pivot pin) with the custom one from the kit.



Clutch Set

Set with Clutch Yes
Max torque 800Nm / 589,9lb⋅ft
Flywheel Type Single Disc
Diameter of Friction Plate 240mm / 9.45"
Clutch Set included Sachs Performance 88 308 200 1243 / 883082.001243
Self-adjusting No
Clutch disc Included
Spline 23x29-10N
Spline Count 10
Release bearing required Dedicated to your gearbox
Clutch fork required Dedicated to your gearbox
Clutch Slave Cylinder required Dedicated to your gearbox
Starter required (not included) Toyota UZ (OE)
Flexplate / ring gear / Drive plate required Toyota Lexus OE 32101-50010 + one spacer OE 32116-50010 4.5mm between the engine block and the flexplate



ADDITIONAL INFORMATION

Adapter Kit Type

Motorsport

Drift
Gearbox adapter thickness 20mm / 0.78"
Tighten the flywheel to the specified torque [Nm / lb⋅ft ] 72Nm 53,1ft·lb + Glue
Flywheel weight 4.80 kg / 10.58 lbs
Replaceable friction surface Yes

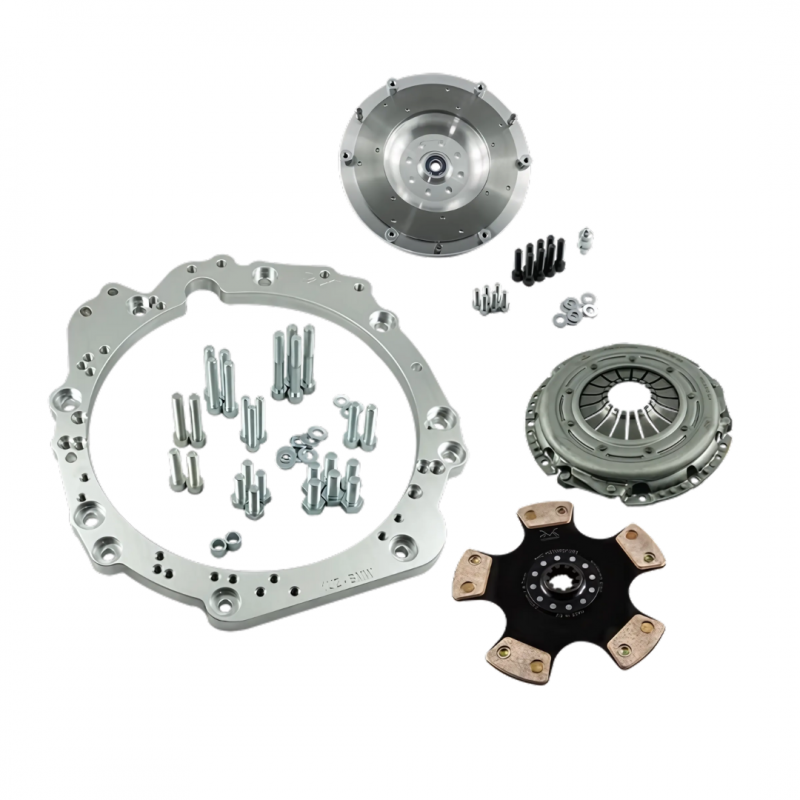

Set includes

Aluminium gearbox adapter

Gearbox adapter bolts

Custom Flywheel

Crankshaft bolts kit

Clutch cover - pressure plate bolts kit

Sachs Performance 88 308 200 1243 / 883082.001243

Custom Clutch fork pivot pin / Ball

Sintered clutch disc 23x29-10N [240mm / 9.45"]
Product Details
RS1-UZ-M50-SP
