PMC Motorsport Custom Flywheel Toyota Lexus V8 UZ 1UZ 3UZ - BMW M50 M52 M54 ZF ZF310 ZF ZF320 ZF5 S5D-250 S50 S52 S54 Getrag 420G - 240mm / 9.45"

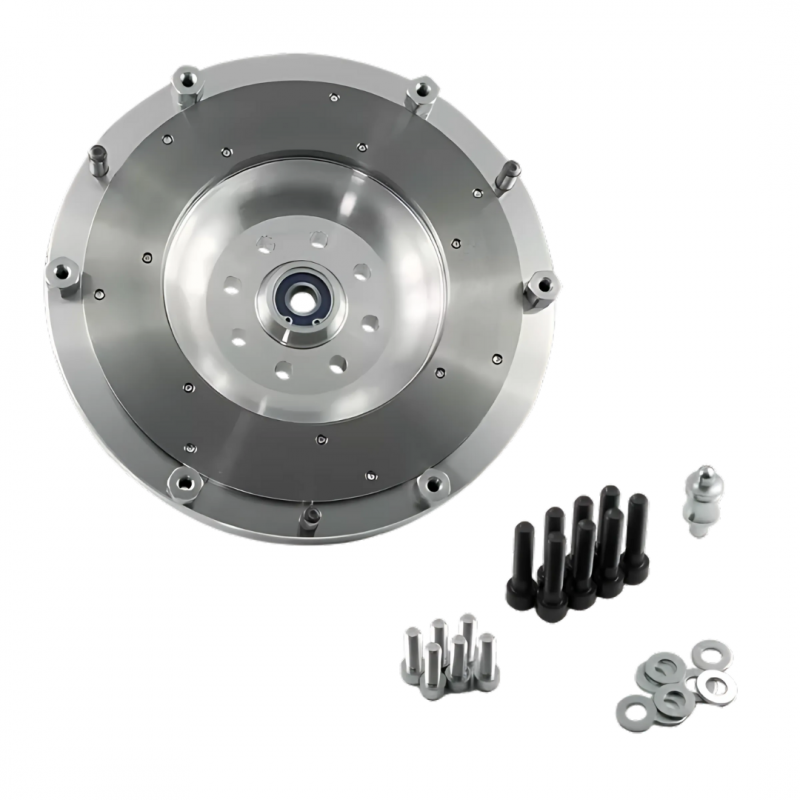

Aluminium custom flywheel enabling the connection (swap/conversion) of the Toyota Lexus V8 UZ 1UZ 3UZ engine with a manual ZF transmission (ZF Friedrichshafen) / Getrag from BMW.

Why Choose BMW Gearboxes?

Availability and price. Millions of BMW vehicles produced globally guarantee easy access to spare parts. Both parts and complete gearboxes are widely available at authorized service centers and on the secondary market.

Durability and reliability. BMW ZF / Getrag gearboxes have been successfully used in both amateur and professional motorsport for many years. They can handle very high torque (some models over 1000 Nm) while maintaining high reliability. They are ideal for engine swaps in high-performance projects for daily use.

Speed and convenience. New generation automatic gearboxes such as ZF 8HP or Getrag DCT DKG offer ultra-fast shifting times (as fast as 0.2 seconds), which significantly improves driving dynamics.

-Every component for which we produce parts is measured using coordinate measuring machines and 3D scanners. Prototypes undergo numerous tests to eliminate any possible issues in their usage. Certified materials from trusted suppliers in production.

-After each production stage, the component undergoes inspection. Quality is confirmed by the ISO PN-EN ISO 9001:2015 certificate.

Installation Instructions

-You should use the flywheel / ring gear from the automatic version, along with one spacer between the engine block and the ring gear (not included in the kit).

-The starter remains OE Toyota Lexus V8 UZ 1UZ 3UZ

-The bearing and clutch release fork remain from the existing gearbox. If you have a bearing with two height positions, use the 24mm position.

-Use a 240mm clutch disc that fits your gearbox.

-Replace the original spherical pin (pivot pin) with the custom one from the kit.
