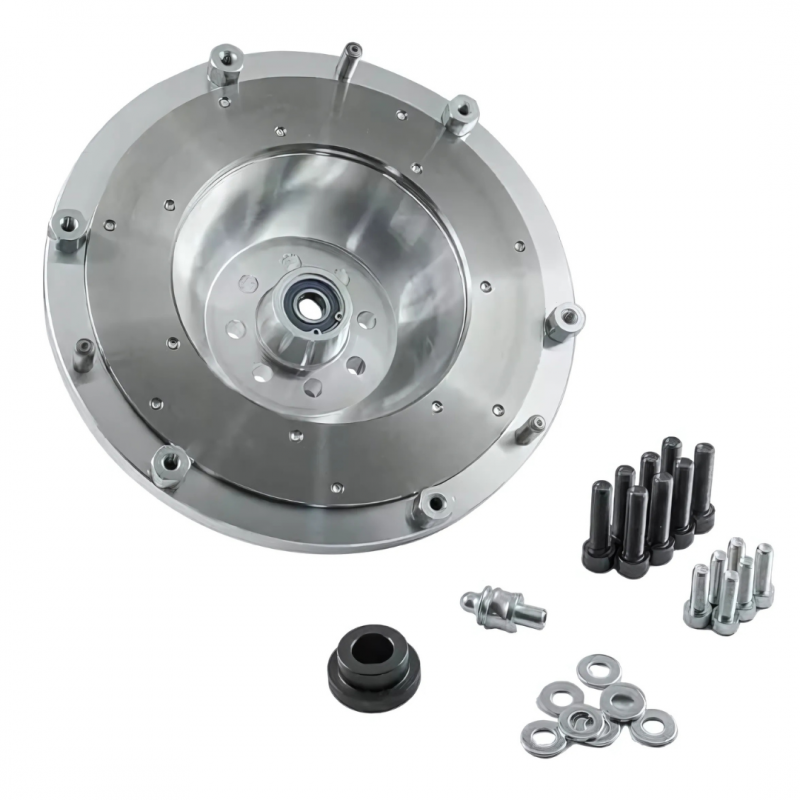

Custom aluminium flywheel designed to mate the Toyota JZ 1JZ 2JZ engine to the BMW ZF manual gearbox
| Compatible engines: |
Toyota JZ (non-VVT-i / VVT-i version) Toyota 1JZ (non-VVT-i / VVT-i version) Toyota 2JZ (non-VVT-i / VVT-i version) |
| Compatible manual BMW gearboxes (Diesel): |
BMW ZF (ZF Friedrichshafen) S5-39 GS5-39DZ 5-speed BMW ZF (ZF Friedrichshafen) M57 E39 530D 525D E46 330D Diesel ZF GS5-39DZ THBA THBM THBG THBK THBC |
PMC Motorsport parts are intended for motorsport use on racetracks. Parts are to be installed by professionals using appropriate tools in suitable workshops
-You should use the flywheel / ring gear from the automatic version of the Toyota 1JZ 2JZ, along with one spacer (OE 32116-22020 4.5mm) between the engine block and the ring gear (not included in the kit).
-The starter remains OE Toyota 1JZ 2JZ
-Remove the bearing from the crankshaft hub (automatic version JZ) and replace it with a centering sleeve from the kit.
-The bearing and clutch release fork remain from the existing gearbox. If you have a bearing with two height positions, use the 24mm position.
-Use a 240mm clutch disc that fits your gearbox.
-Replace the original spherical pin (pivot pin) with the custom one from the kit.
| Flywheel Type | Single Disc |
| Diameter of Friction Plate | 240mm / 9.45" |
| Recommended clutch pressure plate |
SACHS XTend 3000 951 877 (BMW M57) Sachs Performance 88 308 200 1243 / 883082.001243 |
| Clutch disc | BMW ZF GS5-39DZ 5-speed 28X35-10N [240mm / 9.45"] |
| Release bearing required | Dedicated to your gearbox |
| Clutch fork required | Dedicated to your gearbox |
| Clutch Slave Cylinder required | Dedicated to your gearbox |
| Starter required (not included) | Toyota JZ (OE) |
| Flexplate / ring gear / Drive plate required | Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate |
| Flywheel weight | 5.00 kg / 11.02 lbs |
| Tightening torque for flywheel bolts | 72Nm + glue |
| Replaceable friction surface | Yes |
| Set includes |
Clutch cover - pressure plate bolts kit Crankshaft bolts kit Flywheel centring sleeve Custom Clutch fork pivot pin / Ball Custom Flywheel |
| Material |
Aluminium Cast iron |
| Gearbox adapter required | F0BMW-JZ |
