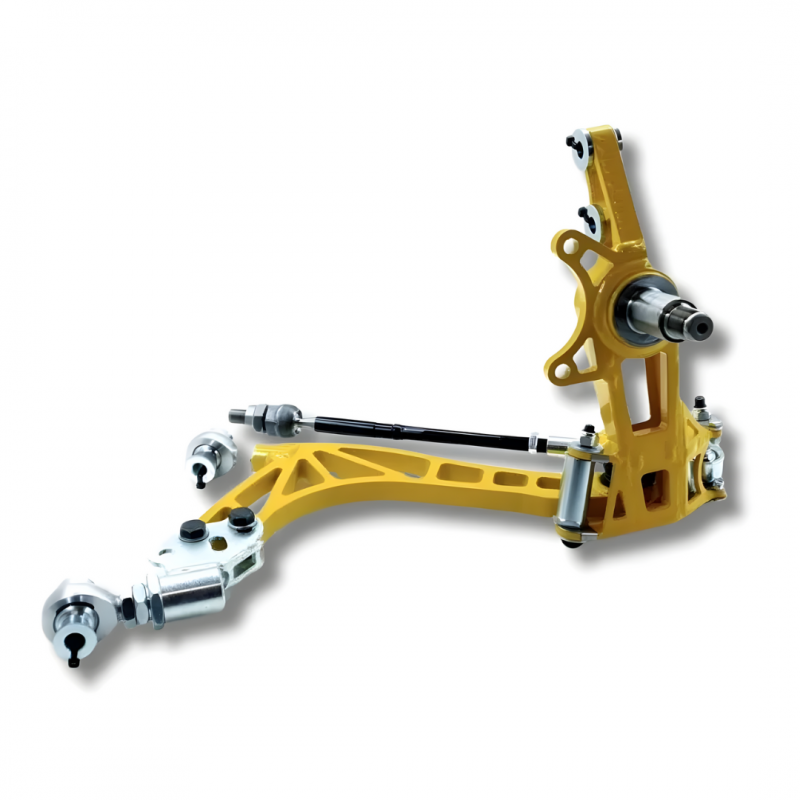

Fully Adjustable Steering Lock / Angle Kit – Nissan S13 S14 S15 ULTRA KIT 5×114.3, 68 Degrees

The kit is compatible with S13, S14, and S15 bodies. The front mounting of the arm is adjustable and can be rearranged to suit different configurations.

The kit is fully adjustable and includes:

• Adjustable Ackermann
• Adjustable steering bump stops (eccentric bushings)
• Adjustable camber
• Adjustable caster

Kit Contents:

• 2 knuckles
• 2 adjustable arms
• 2 adjustable top relocators
• 2 tie rods with tie rod ends
• 1 Ackermann kit (28 locking plates)
• 1 custom subframe
• 1 set of steering rack clamps (3 diameters: 45mm, 48mm, 50mm)
• 1 set of bolts
• 8 mounting bushings for S13 and S14 coilovers

The knuckles are supplied with mounting bushings for M12 and M14 coilover mounting bolts. These elements are easily replaceable and require no additional tools.

Important Notes:

Designed for 18″ wheels only. The knuckles are optimised for maximum roll centre and ideal geometry; 17″ wheels cannot be used.

For Nissan S-BODY and R-BODY, you may select the subframe:

• S13 (CA18DET)
• S14 (SR20DET)
• R32 (RB20DET)
• R33 (RB25DET)

If a subframe other than the S14 is required, please include this information in your order.

Lead Time:

If the kit is not in stock, the manufacturing time is approximately 4-6 weeks.
