Fully Adjustable Steering Lock / Angle kit Nissan S14 S15 ULTRA KIT 5×114,3 18″ 68 degrees

The kit is fully adjustable:

• adjustable ackermann
• adjustable steering bumps stops (eccentric bushings)
• adjustable camber
• adjustable caster

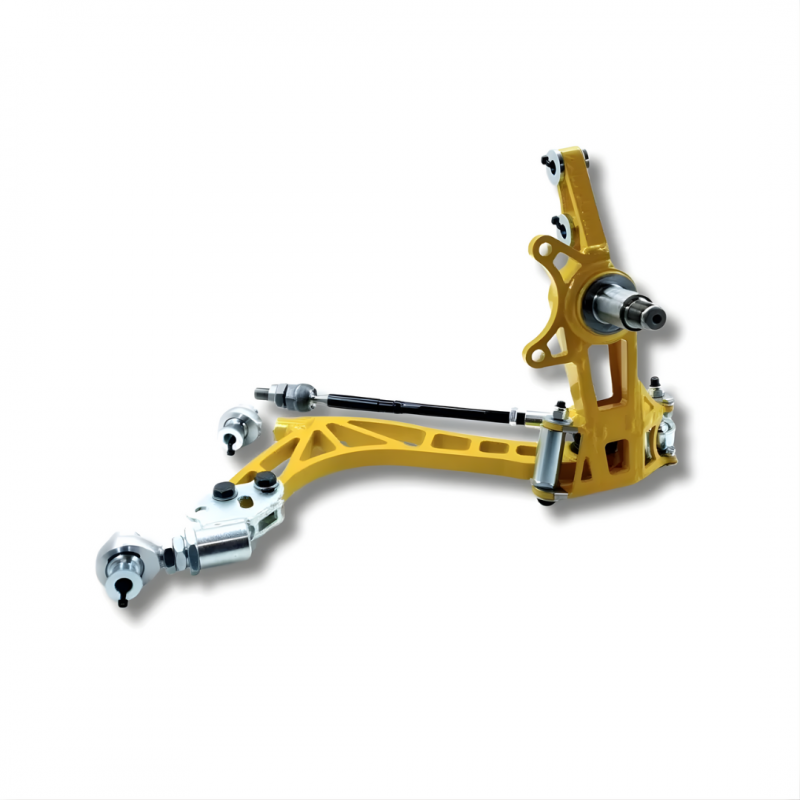

The kit includes:

• 2 steering knuckles
• 2 adjustable control arms
• 2 adjustable top mount relocators
• 2 tie rods with tie rod ends
• 1 steering lock kit (28 locking plates)
• 1 custom subframe
• 1 set of steering rack clamps (3 diameters: 45 mm, 48 mm, 50 mm)
• 1 complete set of mounting bolts
• 8 mounting bushings for S13 and S14 coilovers

The kit is interchangeable between S13 / S14 / S15 chassis.

The front control arm mounting position is redesigned and adjustable.

The steering knuckles are supplied with mounting bushings for M12 and M14 coilover mounting bolts.

These bushings are easily replaceable and require no special tools.

Wheel size:

18-inch wheels only

The knuckles are designed to maximise roll centre and optimise suspension geometry, which is why 17-inch wheels cannot be used.

Designed for Nissan S-Body subframe:

S14 (SR20DET)

If a subframe other than S14 is required, please include this information in the order notes.

If the kit is not in stock, the lead time is approximately 4 weeks.
