Stage 1 BMW M57 306D1 - Nissan Patrol Y61 ZD30 / Y61 TD42 - 240mm / 9.45"

S1-M57N-Y61-952

An aluminium clutch kit enabling the connection (swap / conversion) of the 6-cylinder BMW M57 306D1 engine with the Nissan Patrol Y61 ZD30 / Y61 TD42 gearbox

£1,190.00
Tax included 1-2 weeks delivery time
Quantity



Your purchase is secured by PayPal and Stripe payment system!



Fully insured delivery service by DPD or Parcelforce!



You can always return your UNUSED item for a full refund!

Description

PMC Motorsport Stage 1 Clutch Kit Aluminium Adapter (flange / sleeve) BMW M57 306D1 - Nissan Patrol Y61 ZD30 / Y61 TD42 - 240mm / 9.45"



An aluminium clutch kit enabling the connection (swap / conversion) of the 6-cylinder BMW M57 306D1 engine with the Nissan Patrol Y61 ZD30 / Y61 TD42 gearbox.



Why Choose PMC Motorsport Parts and Adapters?

Professionalism. From design to implementation, our parts go through extensive processes. Each component is measured with a measuring arm and a 3D scanner. Prototypes are subjected to numerous tests to eliminate all potential issues. We use only certified materials from trusted suppliers, and our CNC machining facilities are staffed by experienced professionals.

Perfect Coaxiality. PMC Motorsport adapters guarantee perfect alignment between the engine and the transmission.

Experience. Thousands of adapters produced and satisfied customers worldwide. PMC Motorsport adapters are used in both daily vehicles and professional motorsport projects.

Certified Quality. Quality is priority. Each part undergoes control at every production stage. Every component is engraved with a unique serial number. ISO PN-EN ISO 9001:2015 certified.



Engine List:

BMW M57

BMW M57D30 135 kW (184 HP) 390Nm

BMW E39 M57D25 120 kW (163 HP) 350Nm

BMW E38 M57D30 135 kW (184 HP) 410Nm

BMW E39 M57D30 142 kW (193 HP) 410Nm
Manual gearbox list:

Nissan Patrol Y61 ZD30 3.0

Nissan Patrol Y61 TD42 4.2



Installation Instructions

PMC Motorsport parts are intended for motorsport and track use. Parts should be installed by professionals using the appropriate tools in specialized workshops.



Clutch Set

Set with Clutch Yes
Max torque 650Nm / 479,25lb⋅ft
Flywheel Type Single Disc
Diameter of Friction Plate 240mm / 9.45"
Clutch Set included Clutch pressure from Sachs 3000951952
Self-adjusting Yes
Clutch disc Included
Release bearing required Dedicated to your gearbox
Clutch fork required Dedicated to your gearbox
Clutch Slave Cylinder required Dedicated to your gearbox
Starter required (not included) BMW OE



ADDITIONAL INFORMATION

Adapter Kit Type

Motorsport

Daily
Gearbox adapter thickness 25mm / 0.98"
Replaceable friction surface No

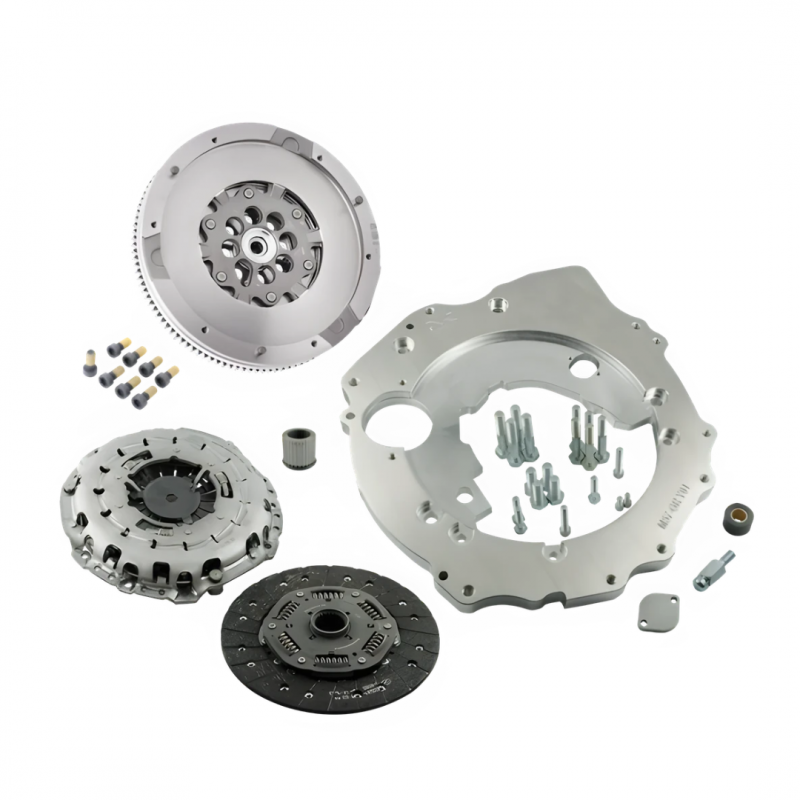

Set includes

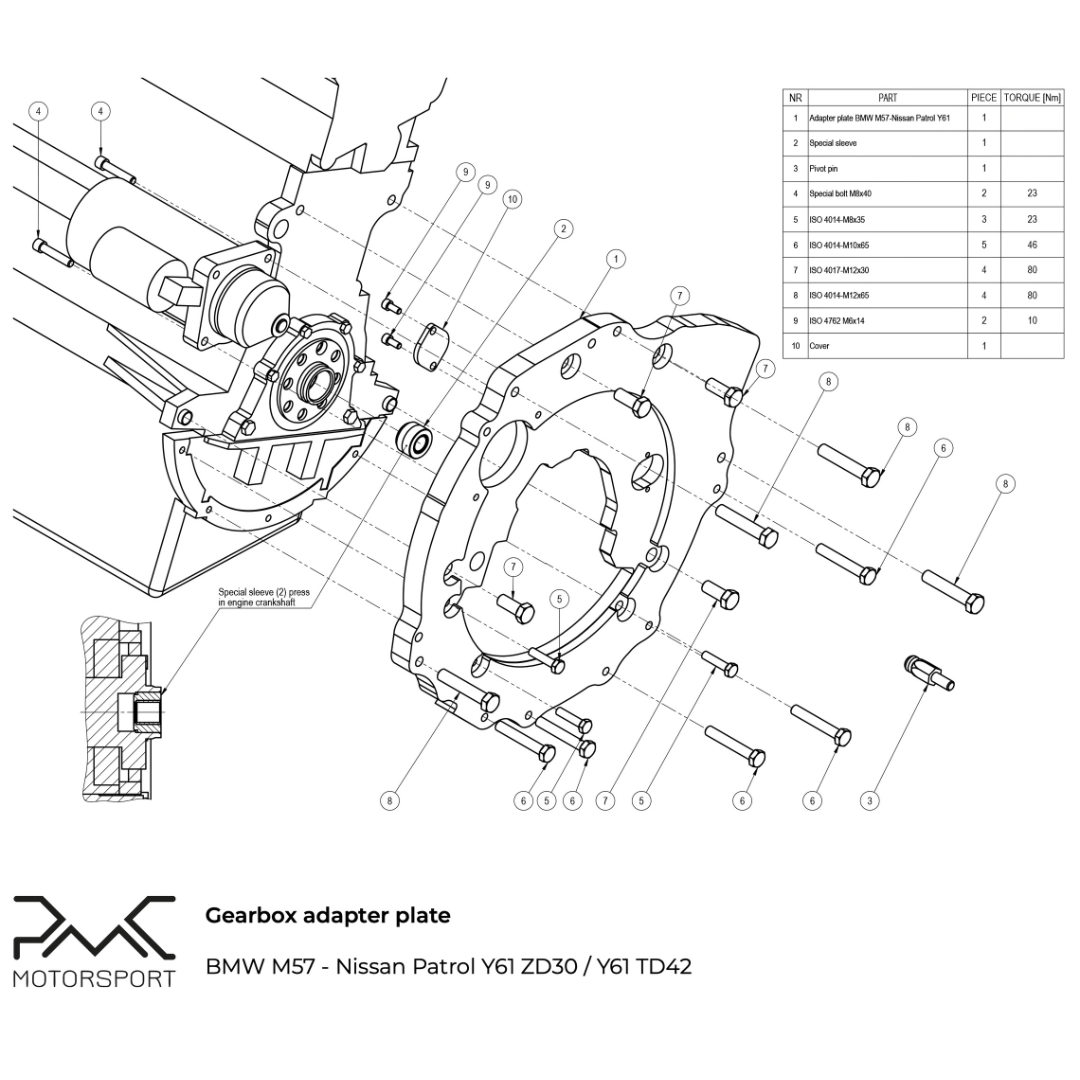

Aluminium gearbox adapter

Gearbox adapter bolts

Custom Flywheel

Crankshaft bolts kit

Clutch cover - pressure plate bolts kit

clutch fork support / pivot pin
Product Details
S1-M57N-Y61-952
