Ford Mustang Coyote 5.0 – DCT GS7D36BG (BMW M5 / M6 S63N) swap kit

DUE TO EXTREMELY HIGH VOLUMES OF ORDERS, DELIVERY TIME OF CLUTCH KITS CAN TAKE UP TO 5 WEEKS

THANK YOU FOR UNDERSTANDING

PLEASE MENTION THE ENGINE and GEARBOX CODE IN THE NOTES

Conversion kit for mating the DCT GS7D36BG gearbox from BMW M5 / M6 models to the Ford Mustang Coyote 5.0 engine.

Kit includes:

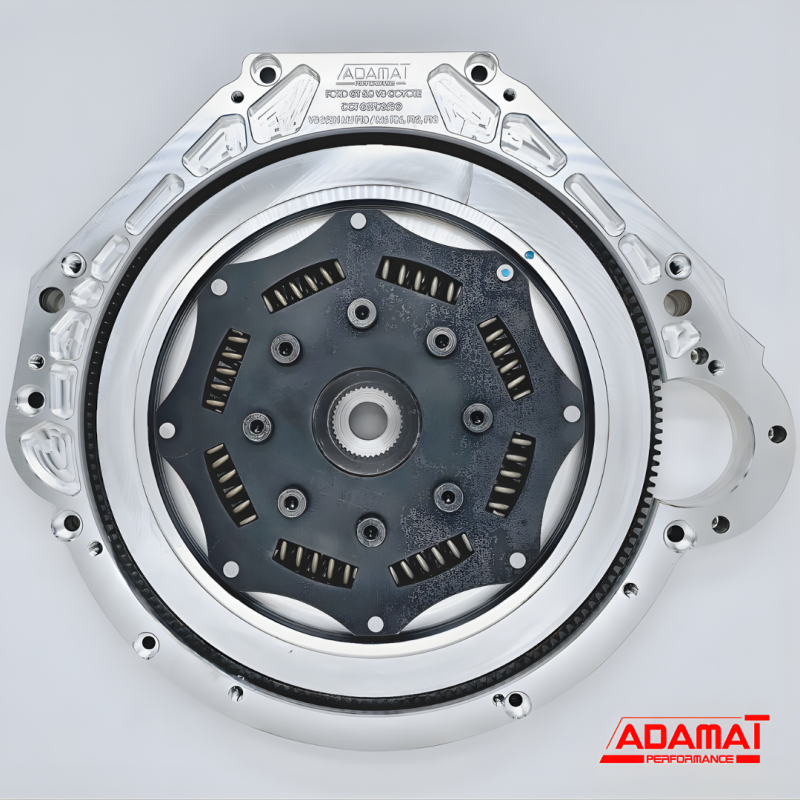

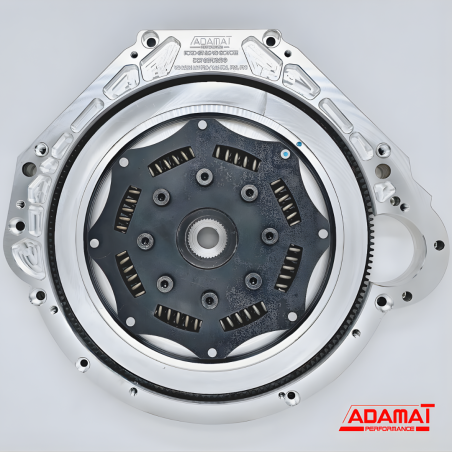

• Flywheel manufactured from a lightweight aerospace-grade AlZnMg+Ti aluminium alloy, with strength comparable to 42CrMo4 steel, fitted with a starter ring gear and a spring-loaded multi-spline insert functioning as a dual-mass flywheel. The flywheel insert is available in five torque configurations:700 / 860 / 1056 / 1150 / 1300 Nm. The maximum transferable torque depends on the springs used and their ability to damp engine harmonic vibrations while simultaneously transmitting very high loads. Supplied as a complete flywheel assembly with installed starter ring gear. The flywheel is dynamically balanced as a complete assembly. Flywheel weight: 10.2 kg
• Adaptor plate manufactured from Fortal AW7075-T651, offering higher strength than S355 and C45 steel. Adaptor thickness: 39 mm
• Mounting bolts for the flywheel, adapter plate, and gearbox

The flywheel is dynamically balanced.

Download the installation instructions in PDF format.
