Twin-disc Clutch Kit up to 1040Nm, 1150Nm, 1300Nm, 1570Nm, 1700Nm of torque and new, light, high-grade aircraft aluminium alloy AlZnMg+Ti flywheel
Your purchase is secured by PayPal and Stripe payment system!
Fully insured delivery service by DPD or Parcelforce!
You can always return your UNUSED item for a full refund!
DUE TO EXTREMELY HIGH VOLUMES OF ORDERS, DELIVERY TIME OF CLUTCH KITS CAN TAKE UP TO 5 WEEKS
THANK YOU FOR UNDERSTANDING

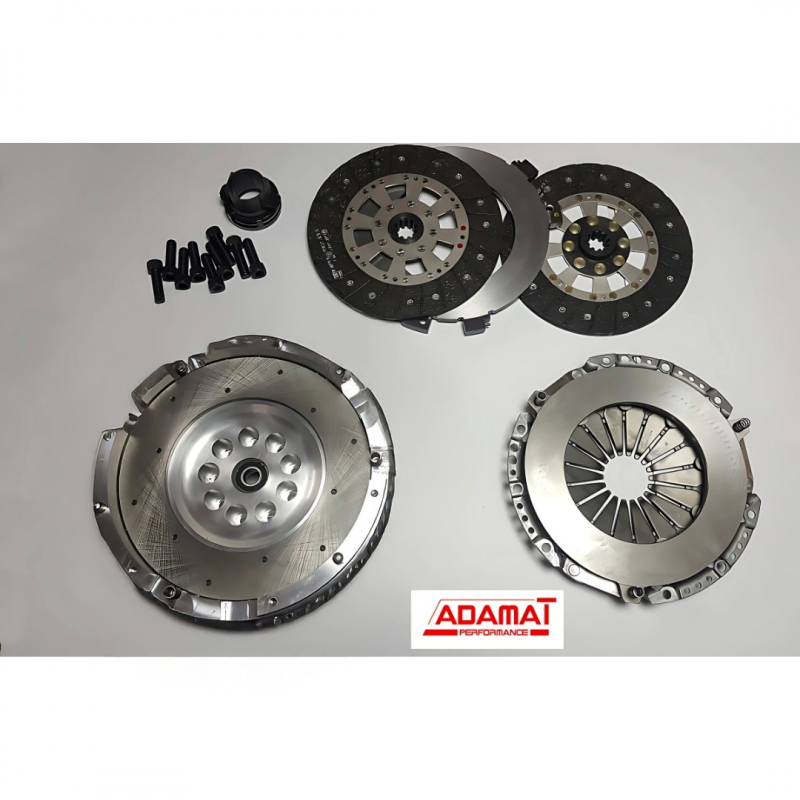

This Kit includes:
-100% CNC machined parts made by ADAMAT Performance
-Hybrid flywheel made from special aircraft grade aluminium alloy with titanium AlZnMg+Ti. Flywheel made as light single mass with inner ductile iron GJS-600 friction disc. The best abrasion and temperature resistance from other materials.
-Complete flywheel with starter ring and trigger ring for crank sensor assembled in adapter plate
-Luk 8090S pads + Sachs pressure plate 3000724001
-Sachs pressure plate
-Clutch disc spacer made from great-resistant structural steel with increased strength and anti-vibration spring system. This simple patented system eliminates knocking from twin disc clutches; it is also very important for eliminating impact loads on the flywheel when clutch kicking. These situations are very dangerous and can cause serious damage to the flywheel.
-12.9 class Flywheel bolts.
-Clutch bearing.
-All necessary bolts for adapter and transmission.
-Manual with installation process.
Clutch set is fully dynamically balanced and maximally optimised for strength analysis through virtual FEM analysis and real tests.
After order please sent us info what engine and gearbox you will use.
Clutch disc options
| STAGE 1 |
Luk 8090S pads + 3000724001 -Street cars and occasional track use |
up to 1040Nm |
| STAGE 2 |
Sintering pads + 3000724001 -Race, rally, drift or drag cars fitted with road-legal tyres |
up to 1150Nm |
| STAGE 3 |
Luk 8090S pads + Sachs Racing 883082.001243 High-performance road cars (approximately 50% road use / 50% track use) |
up to 1300Nm |
| STAGE 4 |
100% Kevlar MAKLAND pads + Sachs Racing 883082.001243 – Off-road and cross-country vehicles |
up to 1570Nm |
| STAGE 5 |
Sintering pads + Sachs Racing 883082.001243 – High-power race or rally cars, drift/drag cars with high-grip semi-slick or slick tyres, cross-country rally-raid vehicles |
up to 1700Nm |
