Nissan RB24 RB25 RB26 RB30 DE DET NEO single disc PERFORMANCE CLUTCH KIT for BMW gearbox from engines M50 S50 M52 S52 M54 S54 M57 M57N and M57N2

DUE TO EXTREMELY HIGH VOLUMES OF ORDERS, DELIVERY TIME OF CLUTCH KITS CAN TAKE UP TO 5 WEEKS

THANK YOU FOR UNDERSTANDING

PLEASE MENTION THE ENGINE and GEARBOX CODE IN THE NOTES

Adamat Performance offers a single-disc clutch kit for Nissan RB20 / RB24 / RB25 / RB26 / RB30 DE / DET / NEO engines TO BMW gearboxes from E36 / E34 / E39 / E38 / E46 / E60 / E61 / E65 / E66 / E90 / E91 / E92 models, originally fitted to M50, M52, M54, S50, S52, N54, M57, M57N and M57N2 engines. The kit is compatible with discs featuring spline dimensions 23x29-10N, 28x35-10N and 28x35-26N for BMW gearboxes from the S5D, GS5, S6S and GS6.

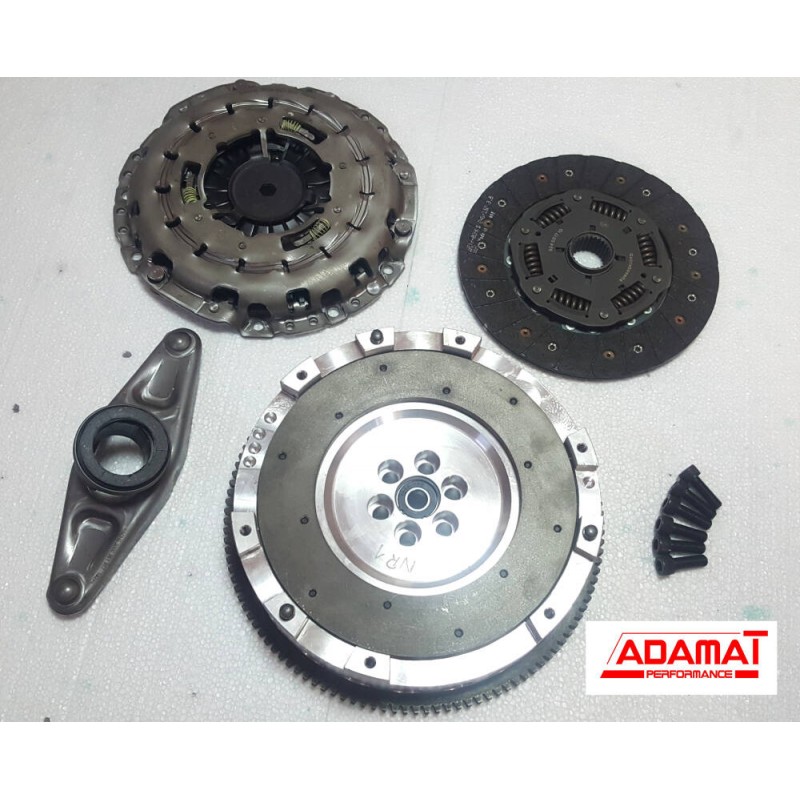

The complete STAGE 1 kit includes:

• 6.9kg CNC-machined single-mass flywheel with an integrated starter ring gear. The flywheel incorporates a replaceable friction insert made of premium GJS600 spheroidal graphite iron.
• LUK 8090S pads + LUK M57 SAC Pressure plate
• Clutch release bearing
• Bolts for flywheel, adapter and gearbox
• Adapter plate, manufactured from DURAL AW-2017A, connecting the Nissan engine to a BMW gearbox. Available in two configurations (see below).
• Dynamic balancing protocol, confirming ISO1940/1 G6.3 class balancing on CIMAT machinery

All clutches are dynamically balanced as complete assemblies.

Setup is available for few BMW gearbox and different clutch discs options

Adapter configuration

Variant 1:

5-speed ZF gearboxes (E36 328i, E46 328i, E46 330i, E39 528i, E39 530i). Recommended with MTF oil. Rated capacity: 650hp / 800Nm. Gearbox codes: S5D-320Z, S5D-310Z, S5D-260Z.

5-speed BMW M57 gearbox (E46 330d, E39 525d, E39 530d). Rated capacity: 800hp / 1100Nm. Gearbox code: GS5-39DZ.

6-speed Getrag gearbox (E46 M3). Rated capacity: 1050hp / 1100Nm. Gearbox code: S6S-420G.

6-speed BMW gearbox (E46 330i). Rated capacity: GS6-37DZ.

Variant 2:

5-speed ZF gearboxes (E36 328i, E46 328i, E46 330i, E39 528i, E39 530i). Recommended with MTF oil. Rated capacity: 650hp / 800Nm. Gearbox codes: S5D-320Z, S5D-310Z, S5D-260Z.

6-speed Getrag gearbox (E46 M3). Rated capacity: 1050hp / 1100Nm. Gearbox code: S6S-420G.

6-speed BMW gearbox (E46 330i). Rated capacity: GS6-37DZ.

6-speed BMW gearboxes from E60 / E61 / E63 / E65 / E66 / E82 / E89 / E90 / E91 / E92 / E93 with petrol N54 or diesel M57N/M57N2 engines. Rated capacity: 1200hp / 1600Nm.

⚠️ Note: Two versions available – with pilot bearing in the crankshaft or in the gearbox input shaft. Gearbox codes: GS6-53DZ, GS6-56BZ, HGU, HGJ, GJD and other GS6 variants.

IMPORTANT!

In the notes for the order, please state what gearbox you will use.


If you have any questions, please ask before the purchase!
