Drift Stage 2 Toyota JZ - BMW M50 S50 M52 S52 M54 ZF-5 - 240mm / 9.45"

DS2-JZ-M50-MK2

Clutch kit enabling the connection of a Toyota JZ 1JZ 2JZ engine with a manual ZF (ZF Friedrichshafen) / GETRAG gearbox from BMW. The adapter supports very popular manual gearboxes such as: ZF 5, GETRAG 420 G, GETRAG 250 G

£1,195.00
Tax included 1-2 weeks delivery time
Quantity



Your purchase is secured by PayPal and Stripe payment system!



Fully insured delivery service by DPD or Parcelforce!



You can always return your UNUSED item for a full refund!

Description

PMC Motorsport adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion / clutch kit) Toyota JZ 1JZ 2JZ - BMW M50 M52 M54 ZF310 ZF320 ZF-5 S5D-250 5-speed / S50 S52 Getrag 420G 6-speed - 240mm / 9.45" + BMW M57 Pressure plate + Sintered disc 23x29-10N max. 700Nm / 516,12 lb⋅ft



Clutch kit enabling the connection (swap / conversion) of a Toyota JZ 1JZ 2JZ engine (GE GTE VVT-i and non VVT-i versions) with a manual ZF (ZF Friedrichshafen) / GETRAG gearbox from BMW. The adapter supports very popular manual gearboxes such as: ZF 5, GETRAG 420 G, GETRAG 250 G

Are you planning a Toyota JZ 1JZ 2JZ SWAP in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace the automatic gearbox with a manual one from BMW and gain new possibilities. PMC Motorsport adapters are not only about replacing gearboxes in Toyota JZ 1JZ 2JZ, but also support in implementing JZ SWAPs in BMW and other vehicles, such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.



Why Choose PMC Motorsport Parts and Adapters?

Professionalism. From design to implementation, our parts go through extensive processes. Each component is measured with a measuring arm and a 3D scanner. Prototypes are subjected to numerous tests to eliminate all potential issues. We use only certified materials from trusted suppliers, and our CNC machining facilities are staffed by experienced professionals.

Perfect Coaxiality. PMC Motorsport adapters guarantee perfect alignment between the engine and the transmission.

Experience. Thousands of adapters produced and satisfied customers worldwide. PMC Motorsport adapters are used in both daily vehicles and professional motorsport projects.

Certified Quality. Quality is priority. Each part undergoes control at every production stage. Every component is engraved with a unique serial number. ISO PN-EN ISO 9001:2015 certified.



Balanced before shipping. Each of our flywheels is thoroughly checked and balanced before shipping

Clutch pilot bearing. The bearing supports the clutch shaft and minimizes its vibrations.

Replaceable friction surface. The worn cast iron surface is easily removable and can be replaced with a completely new one, available in our offer



Why Choose BMW Transmissions?

Availability and Price. Millions of vehicles produced ensure easy access to spare parts, both from ASO services and the aftermarket.

Durability and Reliability. BMW ZF/Getrag transmissions have proven themselves in amateur and professional motorsport for years. They handle high torque (some models 1000Nm+) and are highly reliable, ideal for high-power SWAP projects.

Speed and Convenience. Modern ZF 8HP or Getrag DCT DKG automatic transmissions provide ultra-fast gear shifts (0.2 seconds).



 Compatible Engines:

Toyota 1JZ 1JZ-FSE 1JZ-GE 1JZ-GTE (non VVT-i / VVT-i version)

Toyota 2JZ 2JZ-FSE 2JZ-GE 2JZ-GTE (non VVT-i / VVT-i version)
Compatible Transmissions:

GETRAG S5D-250G S5D250 5-speed

BMW M50 M52

ZF (ZF Friedrichshafen) S5D-310 ZF 310 / ZF310 S5-31 5-speed

BMW M50

ZF (ZF Friedrichshafen) S5D-320 ZF 320 / ZF320 S5-32 5-speed

BMW M50 M52 S50 S52 S54

GETRAG 420 / 420G 6-speed

GETRAG 420 / 420G TBAB BMW S50 E36 M3

GETRAG 420 / 420G TAGU BMW S50 E36 M3

Flywheel does not fit 6-speed BMW M54 gearbox



ZF Friedrichshafen ZF5 S5-32D

ZF Friedrichshafen ZF-5 (ZF 5) S5D-310 S5D-320 5-speed manual gearbox used in BMW E-series with M50 M52 M54 engines ( E36 328i, M3 USA E46 328i, 328ci, 330i, E34 525i (M50), E39 525i (M54) 528i (M52) 530i (M54), Z3 2.8i (M52) 3.0i (M54), Z3 M3.2i (S52) *Canada & USA only, M3.2i (S54) ), gearbox weight is approx. 39 kg (86 lb),



Male spline type : 23x29-10N

ZF 5 Gear Ratios

1 2 3 4 5 R
4.210 2.490 1.670 1.240 1.000 3.850



Installation Manual

PMC Motorsport parts are intended for motorsport and for use on racetracks. Parts for installation by professionals using appropriate tools in workshops adapted for this purpose.

The flywheel is made of aluminium and cast iron and is fully recyclable.

Custom flywheel requires the use of a ring gear / flywheel from a Toyota JZ automatic - not included in the kit!





Clutch Set

700Nm / 516,12 lb⋅ft

Set with Clutch Yes
Max torque 700Nm / 516,12 lb⋅ft
Flywheel Type Single Disc

Diameter of Friction Plate

 240mm / 9.45"
Clutch Set included M57 Pressure Plate

Self-adjusting

 No

Clutch disc

 Included
Spline 23x29-10N

Spline Count

 10

Release bearing required

 Included

Clutch fork required

 Included
Clutch Slave Cylinder required                        Dedicated to your gearbox
Starter required (not included) Toyota JZ (OE) without additional pinion cover
Flexplate / ring gear / Drive plate required                                                             Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate



ADDITIONAL INFORMATION

 Adapter Kit Type

Motorsport

Drift
Gearbox adapter thickness 20mm / 0.78"
Drive shaft bolt tightening torque [Nm / lb⋅ft ] 72Nm 53,1ft·lb + Glue
Flywheel weight PMC 5.00 kg / 11.02 lbs
Replaceable friction surface Yes

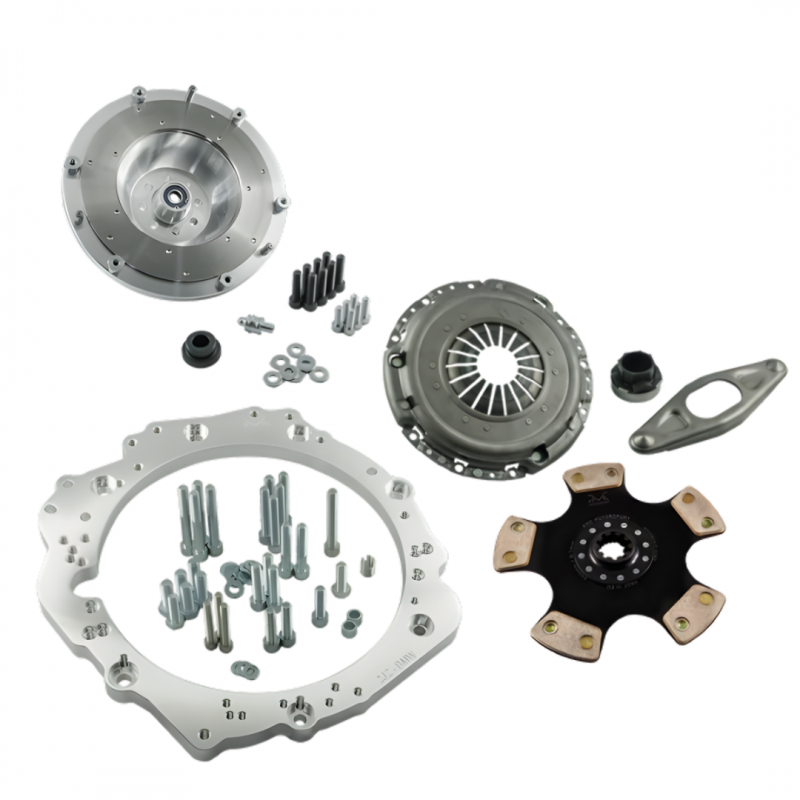

Set includes:

Aluminium gearbox adapter

Gearbox adapter bolts

Custom Flywheel

Crankshaft bolts kit

Clutch cover - pressure plate bolts kit

Custom Clutch fork pivot pin / Ball

Clutch cover

Clutch module

Sintered clutch disc 23x29-10N [240mm / 9.45"]
Product Details
DS2-JZ-M50-MK2
